Developed in Australia by Ibtech, Spiraline X is the latest and most advanced spiral lining technology in the trenchless pipeline renewal/rehabilitation industry.
Spiraline X is an expandable spiral wound uPVC liner designed for lining DN1350 to DN1200 gravity sewer and stormwater pipes. This lining process is ideal for renewing deteriorated pipes with faults like cracks, root intrusion, leaks (infiltration/exfiltration) and joint displacements.
The Ibtech Spiraline X is by far the most advanced technology in the marketplace today for spiral wound liners.
The liner can be installed in most flow conditions with no flow management required. Spiraline X has been proven capable for lining in environments with heavy infiltration.

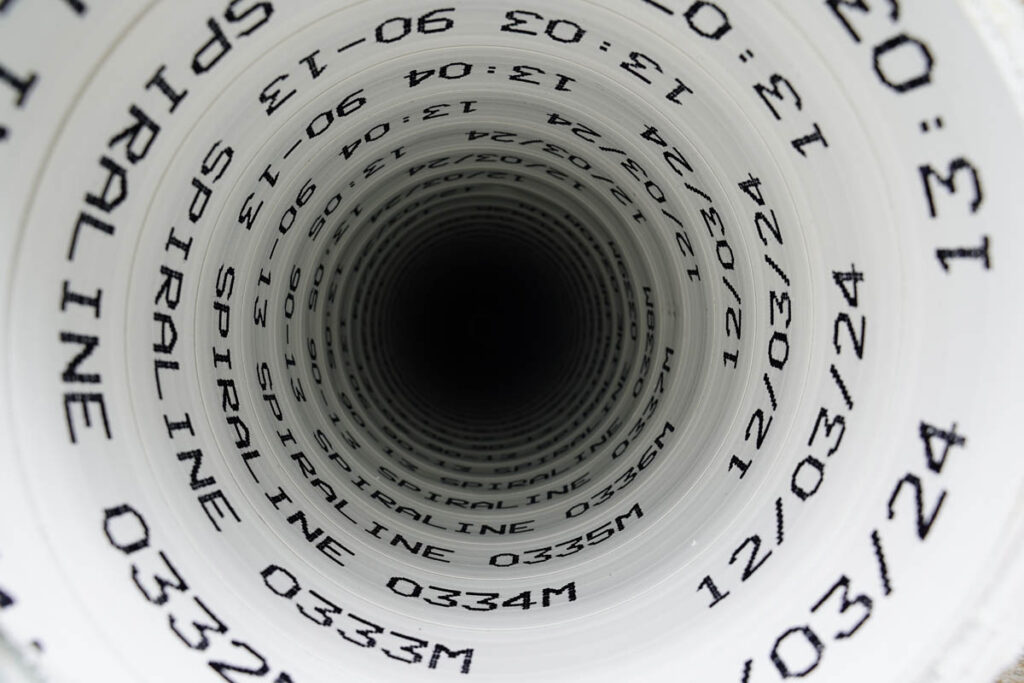

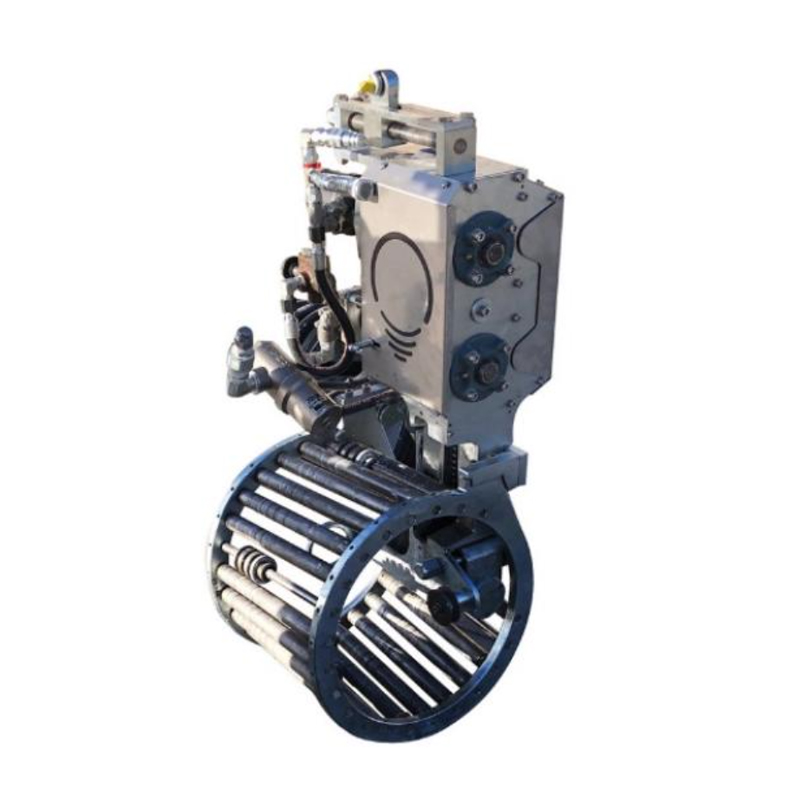

Designed to be installed from manhole to manhole to ensure the longevity of the full pipe length. The installation process involves spirally engaging the male and female locks of a profiled wall uPVC strip to form the liner within the host pipe. The liner is installed smaller than the host pipe and then expanded so that it is in contact with the host pipe. The result is a fully structural, sealed, and hydraulic efficient renewal of the host pipe without excavation.

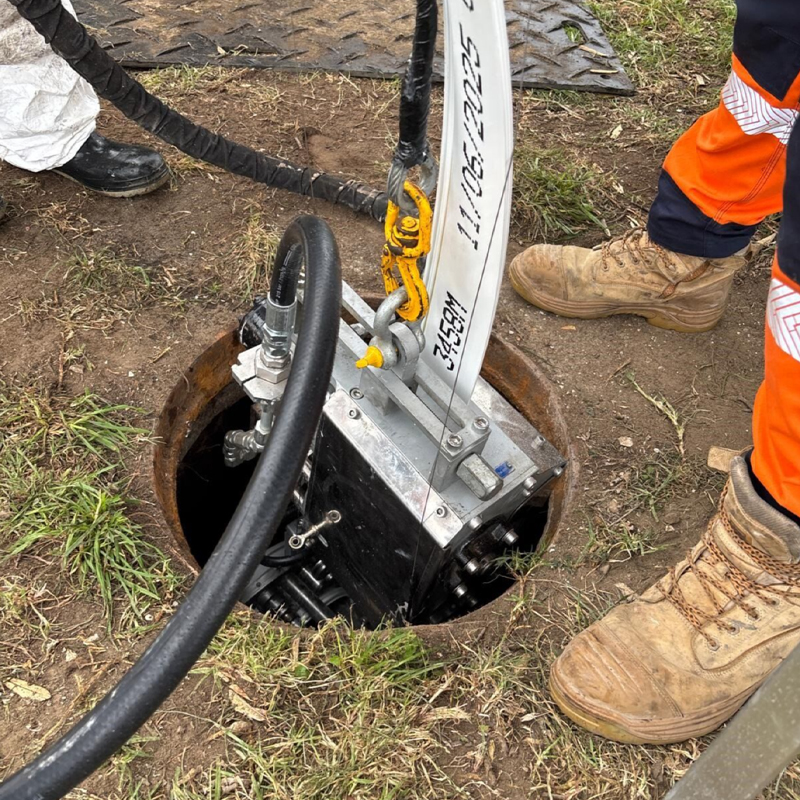

The only access point required for installation is a standard diameter manhole cover. For lining the larger diameter host pipes (say DN525 and larger) it might be necessary to remove the concrete manhole lid for access.
The ductile but rigid, and corrosion resistant uPVC liner with silicone sealant can accommodate pipelines with curves less than 10 degrees or radius of curvatures greater than 50 metres.

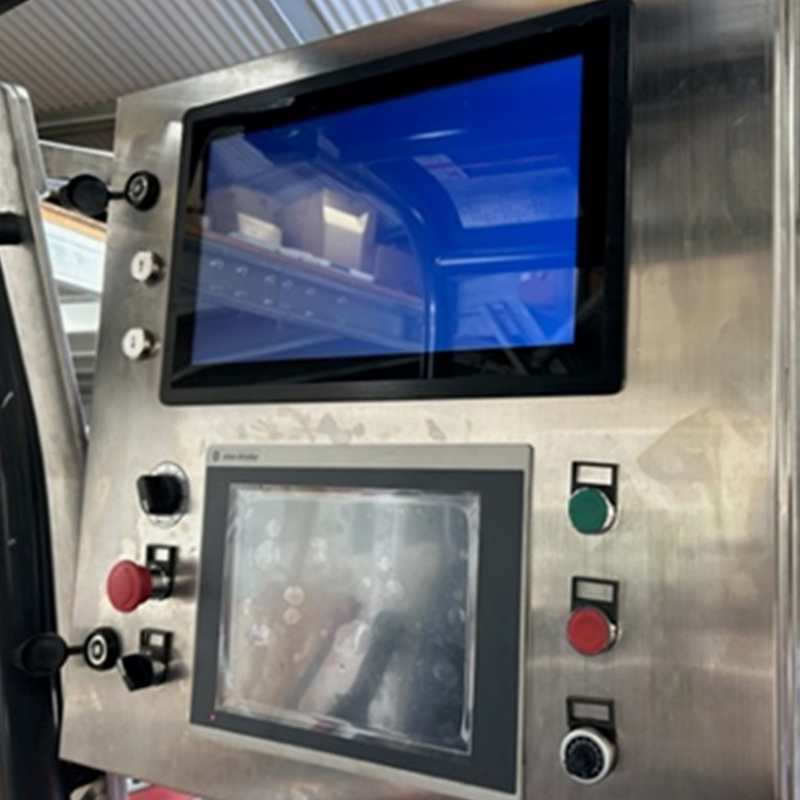

Aiding the physical installation is the control system located in the front cab. This allows for managing/adjusting the settings, as well as monitoring and recording the full installation in real-time.
